ICS / Industrial Control Station

    ICS Single

    Our Industrial Control Station provides a unique packaged system for local authority over a variety of services via control circuitry coordinating with preassembled solenoid/valve and electrical companion enclosures. These systems afford the ability to monitor the application, as well emergency shutdown.
  • Panic Button - Disengages the system-requiring key activation to re-engage.
  • Key Switch - Activates the system each time a circuit is to be engages.
  • Control Switch - Activates circuit(s) with key activation or deactivates to OFF
  • Panel Mounted LED - Indicates that System is Active.
  • Available Companion Components: Individual solenoids as well as solenoid enclosures are available as companion components for the ICS. Additionally, service panels can be custom assembled for application demands where output circuitry is in excess of units ratings.

    ICS Double

  • 2-Hole, Heavy-Duty Stainless-Steel Pipe Straps.
  • Pre-formed to secure tubing to roller supports with a loose fit allowing for expansion and contraction of the pipe.
  • Pipe Straps are set over the pipe then secured with provided hardware.

Specifcations


Example: MX-1.375 - (Clamp Size)-SA
The Structurally Attached Support Series provides a manufactured support designed to secure single piping systems on single ply or built-up roofs in areas where seismic or high wind zones are of concern and where structural design allows for system loads at attachment points.
  • Valve Assembly 125 psi 3/4" Ball Valve; Male Hose Fitting/Quick Disconnect
  • Drain Features Provided with "loose-fit"wye-strainer for field installation
  • Handle Black powder coated cast aluminum Weather Guard Dome Handle
  • Shroud Grade 304 stainless steel shroud w/ welded stainless steel flange
  • Insulation R-8 rated / Thermo Cell Insulation
  • Mounting Hardware Black powder coated under-deck support flange w/ hardware
  • Optional Deck Cap - Suffix "D"

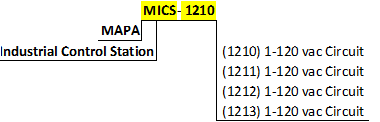

Model Numbers

ICS Model Numbers "file:///C|/Users/Paul Talbert/AppData/Roaming/Adobe/Dreamweaver 2020/en_US/ImageManipTemp/ImgOptTemp0000006.png" width="380" height="122">

Available Companion Components:

Individual solenoids as well as solenoid enclosures are available as companion components for the ICS.  Additionally, service panels can be custom assembled for application demands where output circuitry is in excess of units ratings.
